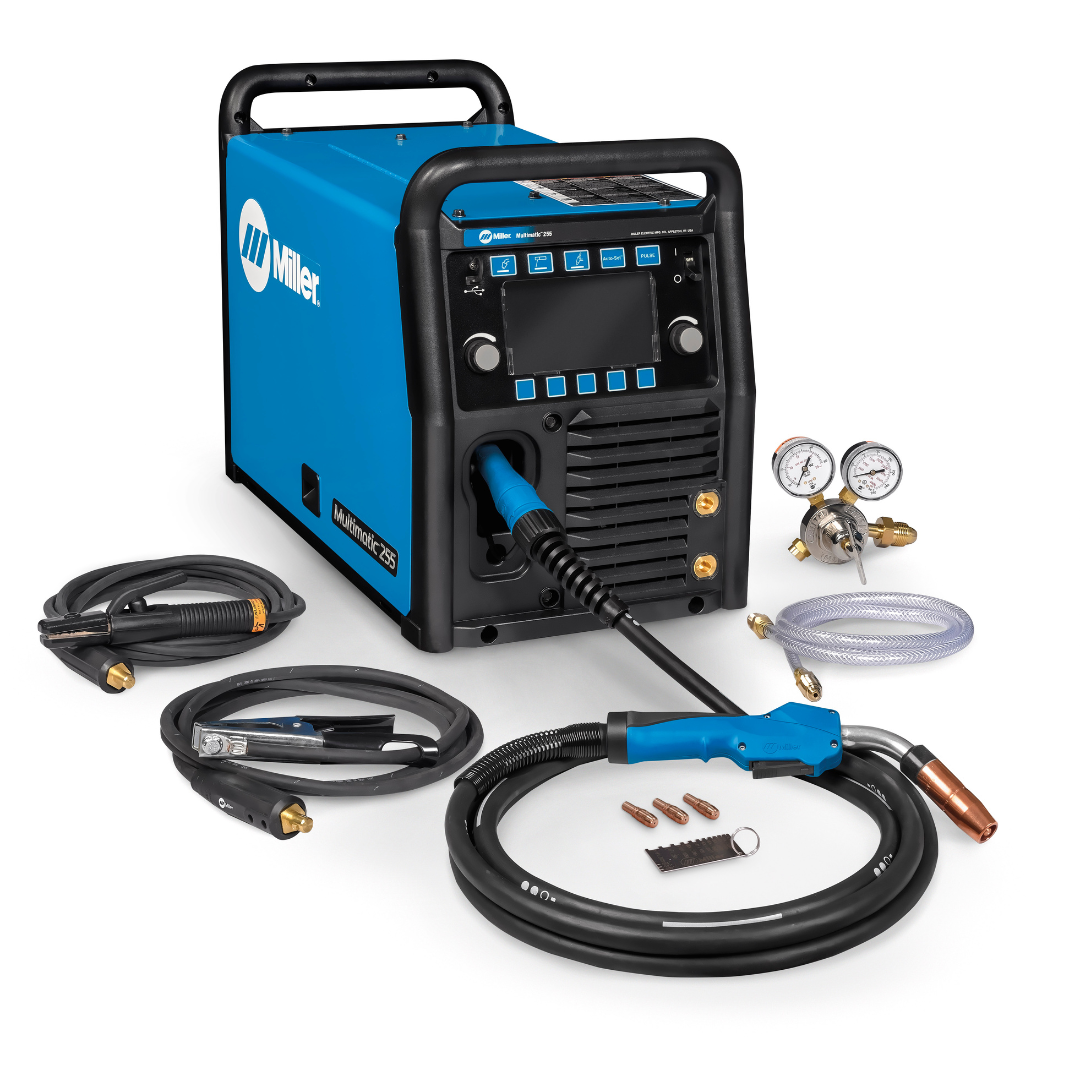

Multimatic® 255 Multiprocess Welder

Built for professionals in the MRO and light manufacturing fabrication segments who want a smaller, versatile welder with intuitive setup to increase efficiencies and productivity. This 250-amp inverter multiprocess welder is easy to use, will deliver
versatility for faster uptime and performance, while allowing for portability.

What s Included

• Power source with 7 ft. (2.1 m) industrial power cord
• 15 ft. (4.5 m) 250-amp MDX™-250 MIG gun with AccuLock™ MDX consumables for .030 .035 in. (0.8 0.9 mm) wire
• 10 ft. (3 m) cable with electrode holder and 50 mm Dinse-style connector
• 10 ft. (3 m) work cable with clamp and 50 mm Dinse-style connector
• Flow gauge regulator and gas hose for argon or AR CO2 mix
• 0.030 .035 in. (0.8 0.9 mm) reversible drive rolls
• EZ-Latch™ single-cylinder running gear
• Chain to secure gas cylinder
• Extra contact tips
• Material thickness gauge

• Product Name		Miller Multimatic 255
  Welding Processes		MIG (GMAW), Flux Core (FCAW), TIG (GTAW), Stick (SMAW)
  Input Voltage		208V – 575V, Single Phase
  Welding Output Amps (230V)		MIG: 30 – 350A TIG: 5 – 275A Stick: 30 – 275A
  Output Current		DC – CC CV
  Aluminum TIG		❌
  Spool Gun Ready		✔️ – Spoolmate 150
  Dimensions		H: 19.24 in. (489 mm) W: 13.75 in. (349 mm) D: 24.25 in. (616 mm)
  Weight		63 lb
  Warranty		Machine: 3-Year Parts & Labour, Torch: 90 Days Parts



  Full Product Data Sheet | MultiMatic 255 User Manual | MDX Torch Consumables

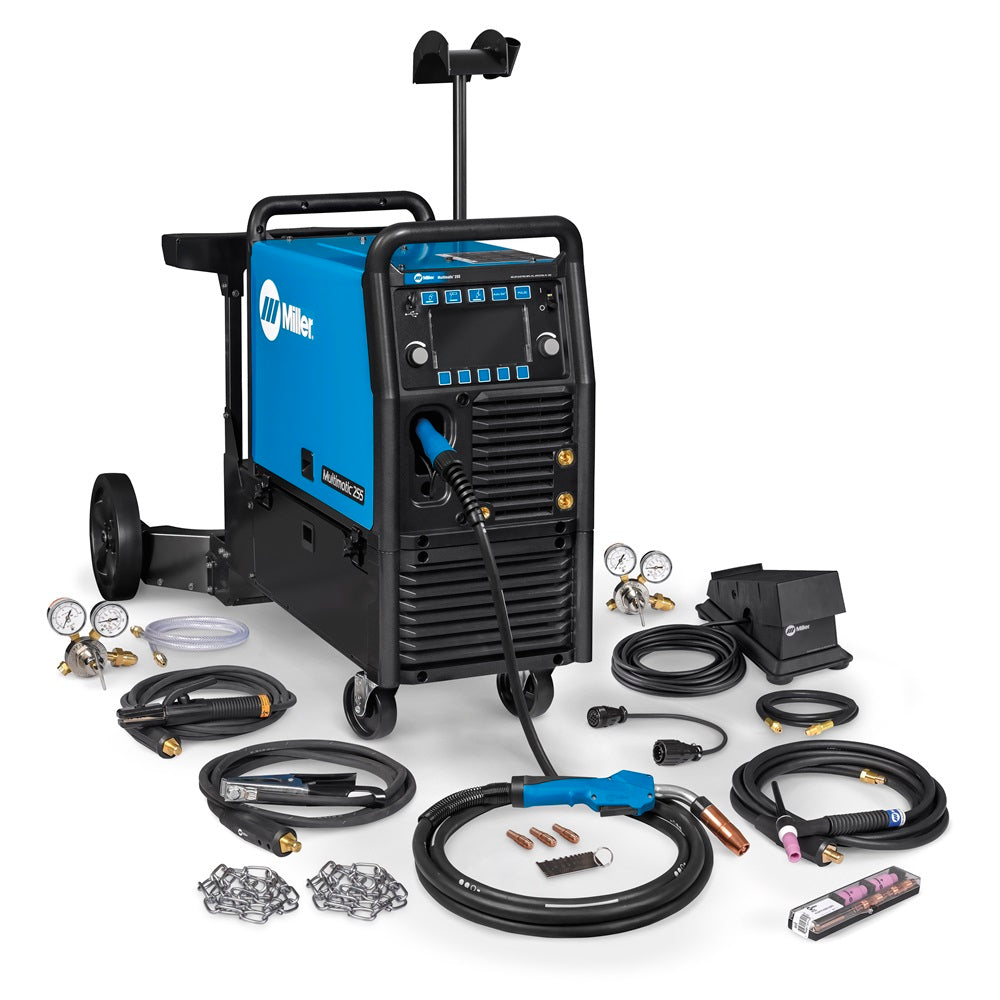

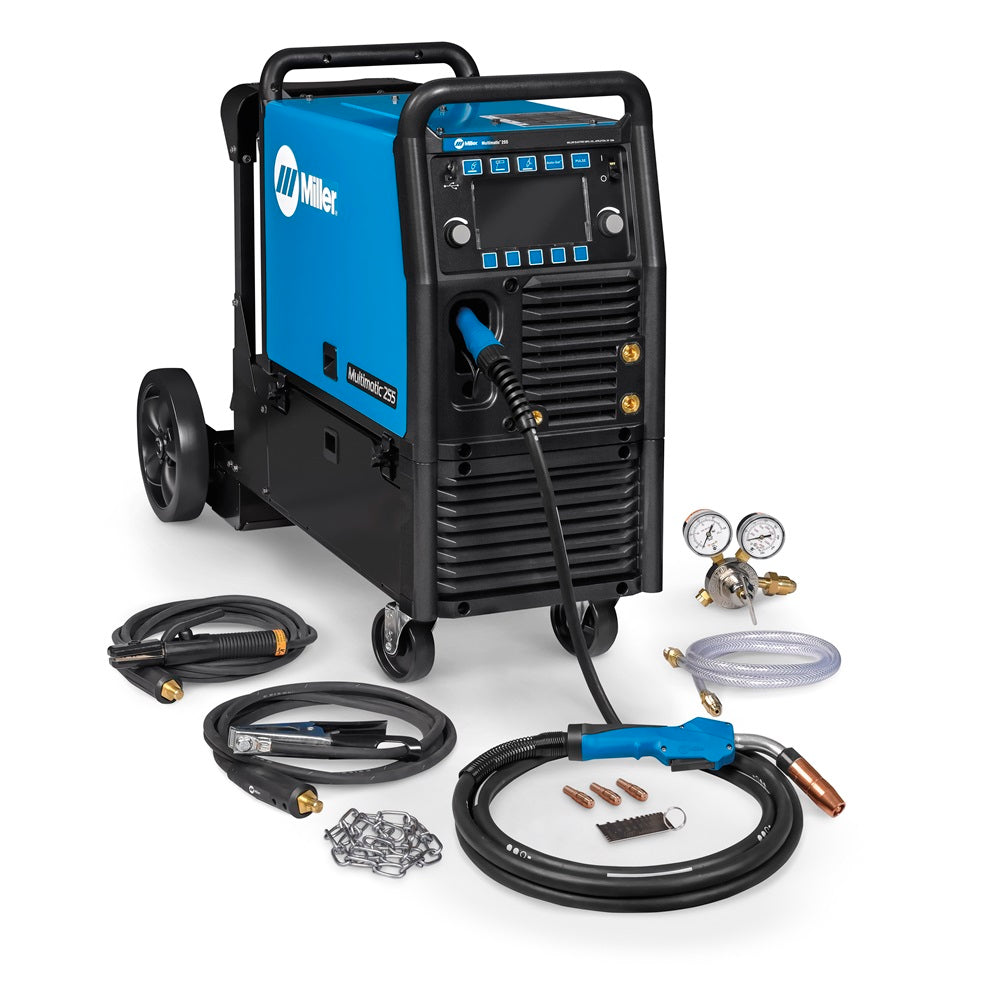

  Select Model	Machine Only, w/ Single Cylinder Running Gear – 951767, w/ Dual Cylinder Running Gear & TIG Kit – 951768
