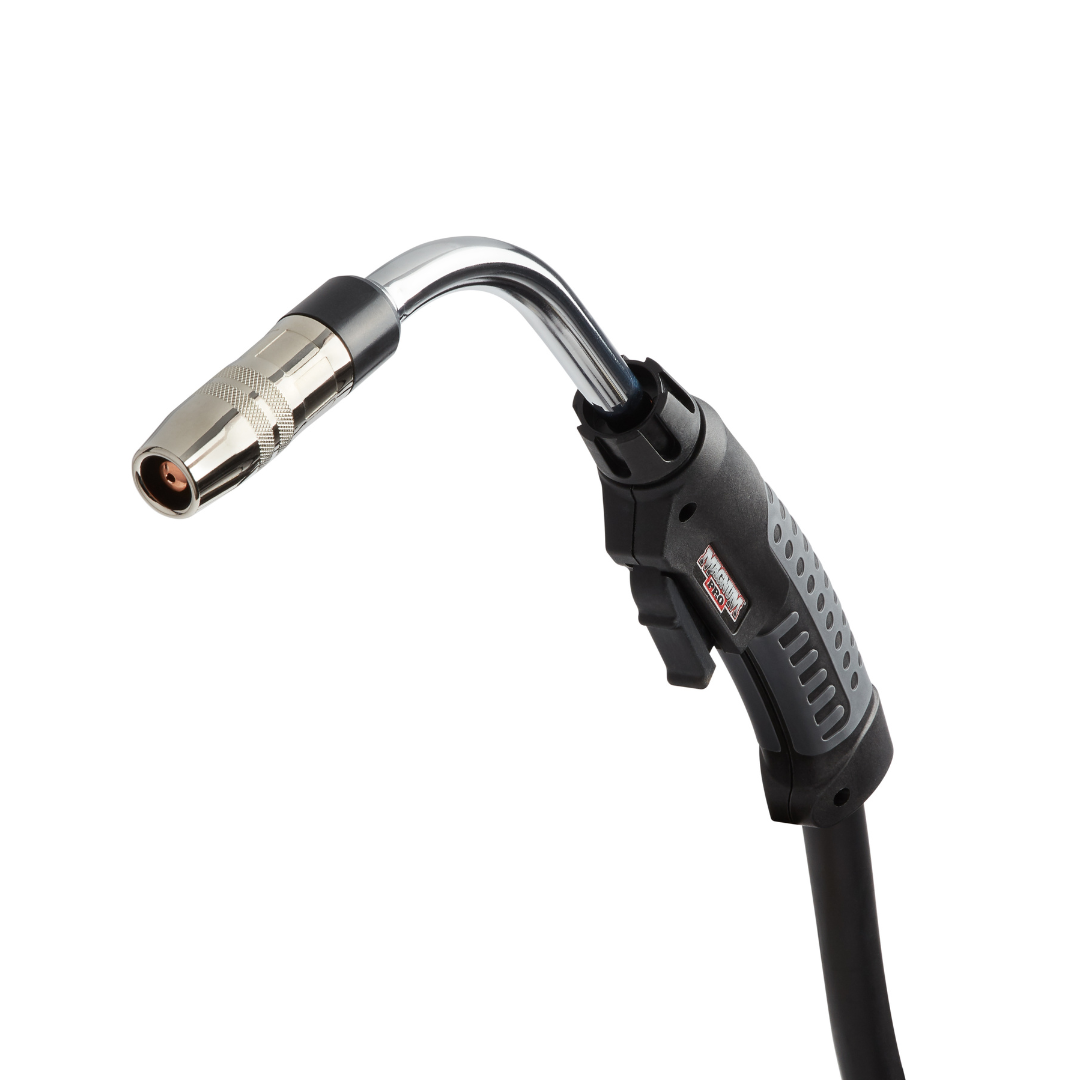

Lincoln Magnum® PRO Curve™ HDE™ 350 MIG Guns

The most durable and ergonomic MIG guns in the Magnum PRO family. Designed for rugged welding environments, the Magnum PRO Curve HDE guns with Magnum PRO expendables are built to last.

Features

• 100% Duty Cycle – The Magnum PRO Curve HDE guns have the highest duty cycle rating in their class, making them ideal for rugged environments and high heat applications

• Premium Expendable Performance – Lincoln Electric s long-lasting Magnum PRO expendables are designed with welding arc performance in mind. Using Magnum PRO expendables results in more time welding and less time wasted

• Tool-less Rotatable Gun Tube – The bolt of the gun tube can be loosened without the need for tools and rotated 360°, so it is easy to position into a comfortable spot for welding

• Over Molded Handle – The soft rubber over molding enhances comfort and allows for an easier grip of the gun

• Technical Details

  • Processes:  MIG, Flux-Cored Gas-Shielded

  • Amperage:  350 Amps

  • Duty Cycle:  100% Duty Cycle – Mixed Gas

  • Wire Size Range:  .025 – 5 64 (0.8 – 2 mm) wire

  • Available Configurations

    Please note some torches do not include machine connector or liner.

    Torch Length		Machine Connector		Liner Size		Part Number
    15 ft.		NONE		NONE		K4532-2
    15 ft.		K466-6 – PowerMIG and Wave 300C		0.035-0.045		K4532-2-6-45
    15 ft.		K466-3 – Miller		0.035-0.045		K4532-2-3-45
    15 ft.		K466-10* – See Below		0.035-0.045		K4532-2-10-45
    20 ft.		NONE		NONE		K4532-3
    25 ft.		NONE		NONE		K4532-4
    25 ft.		K466-6 – PowerMIG and Wave 300C		Up to 1 16		K4532-4-6-116

    K466-10 Connector Compatibility

    • LF-72™, LF-74™ Series
    • Flex Feed® 74 HT, Flex Feed 84
    • LN-25 PRO™, LN-25X®
    • Activ8®, Activ8X®
    • Power Feed® 10, 10M, 25M, and 84 PIPEFAB™

    • K466-1 Connector Compatibility

      • LN-7™ Series, LN-8™, LN-9™
      • LN-25® (up to 0.052 in. (1.4 mm) wire)
      • LN-23P™

      • K466-3 Miller Connector Compatibility

        • Intellimatic™
        • Millermatic® 252
        • MM-35, S-42GL, S-52A
        • Swingarc™-Dual, Swingarc-Single
        • S-32S
        • 52D, 54D, 54E
        • 60 Series
        • 70 Series

    Cable Length	15 ft., 20 ft., 25 ft.
    Machine Connector	No Connector, K466-6 – PowerMIG Series, K466-10 – LF & Powerfeed, K466-3 – Miller
