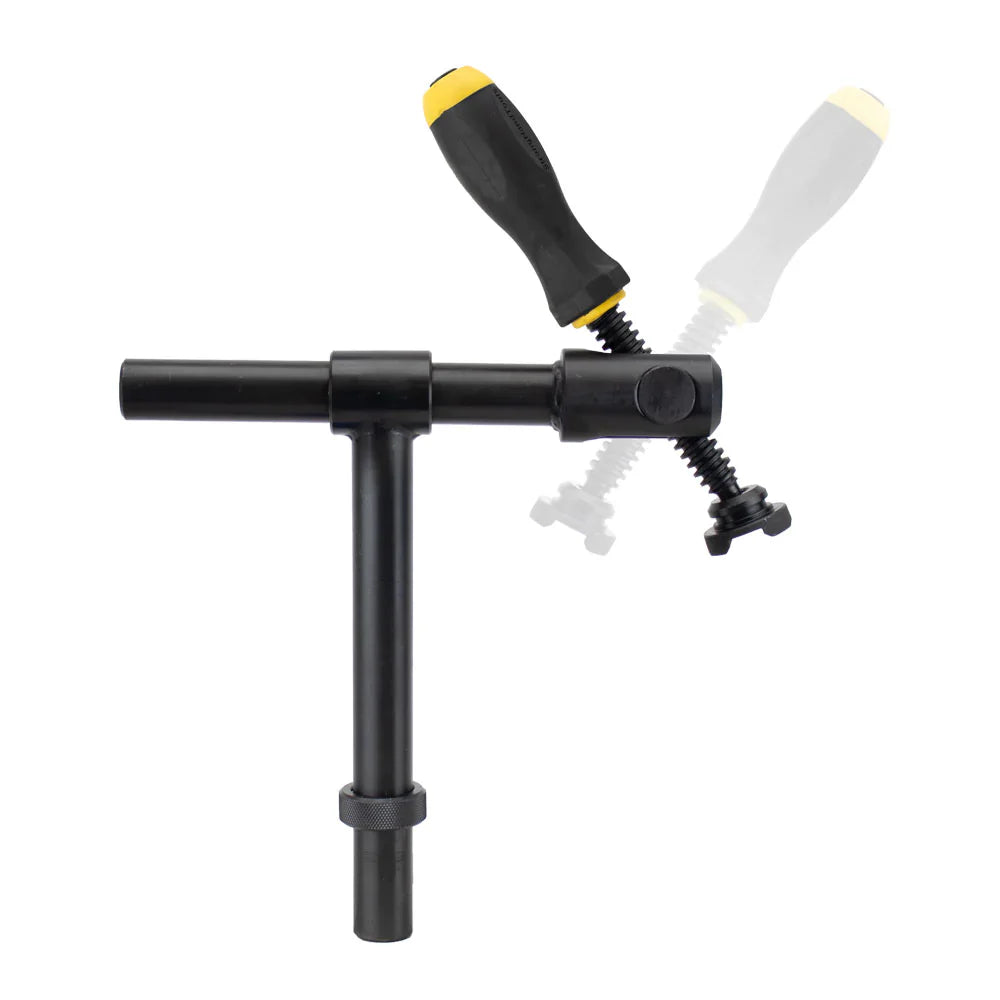

BuildPro Alpha 28 T-Post Pipe Clamp, for 28mm Holes



The T-Post Pipe Clamp features horizontal and vertical adjustment as well as pivoting action at the spindle head. An adjustment ring at the base allows it to sit in a lower profile during welding as the round bar sits below the table or clamping square surface.

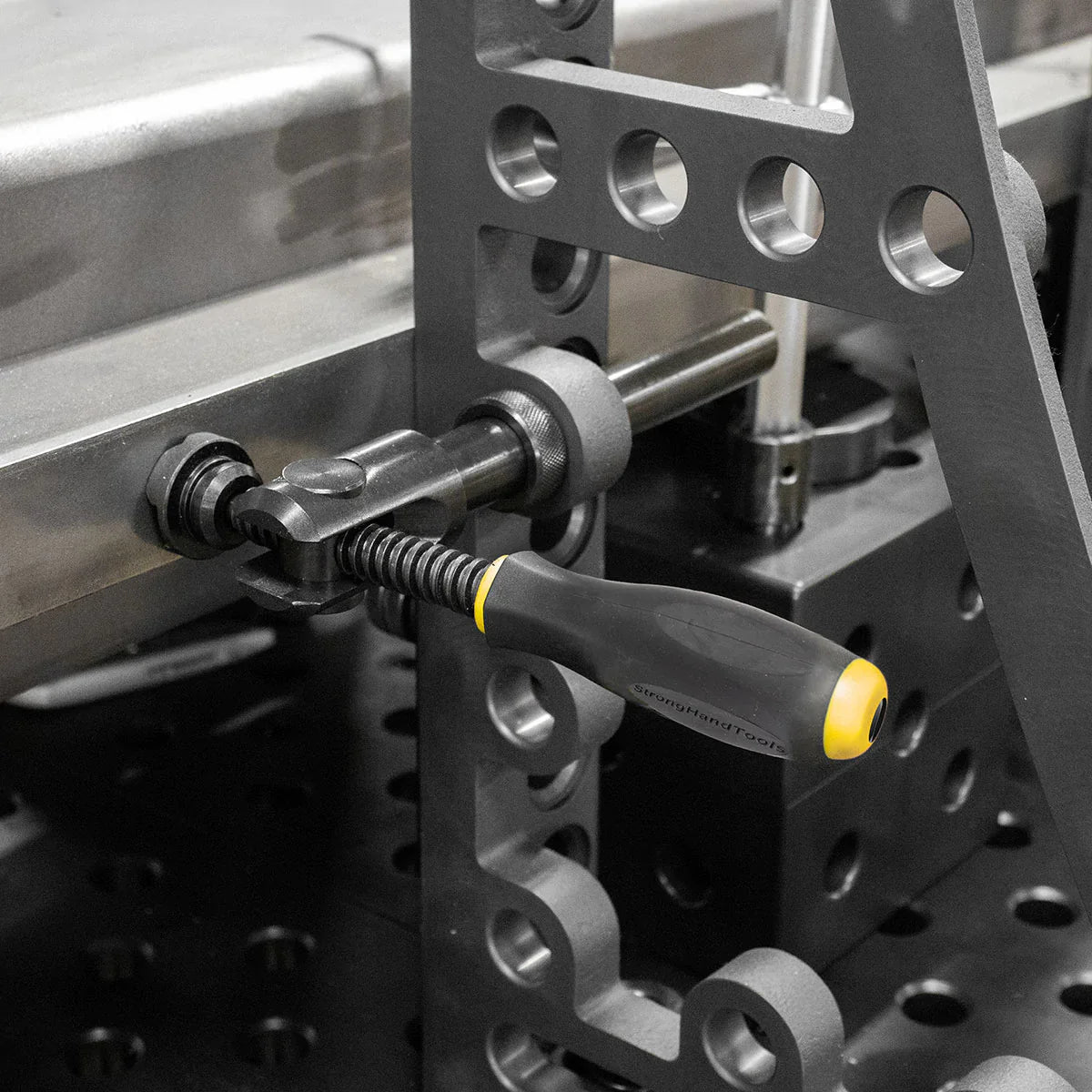

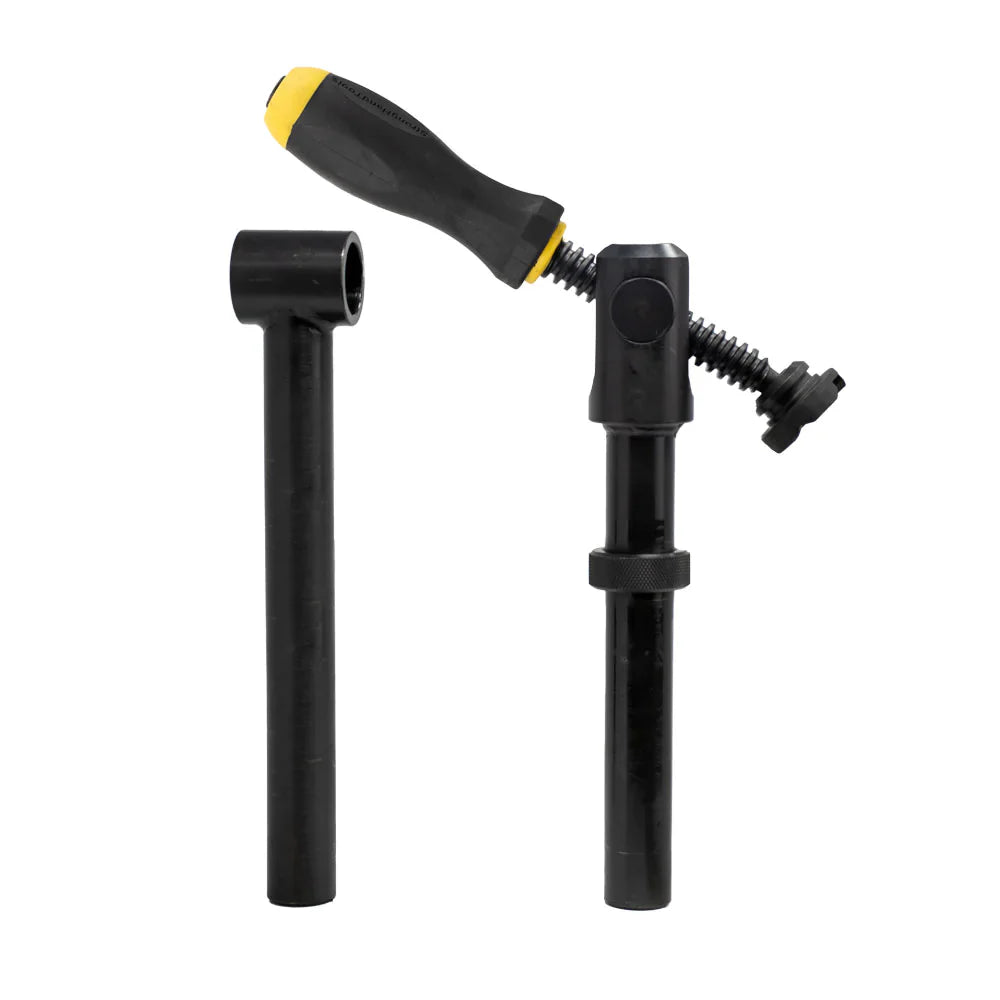

For HORIZONTAL clamping, remove the top arm from the clamp post, and place directly into the tabletop holes.

Insert the clamp base into welding fixture table holes or tooling and use the convenient sliding arm to adjust to required height.

Part Number		Description		Vertical Bar Height (mm)		Horizontal Bar Length (mm)		Weight (kg)
T28-61416		T-Post Pipe Clamp		250		110		2.4
