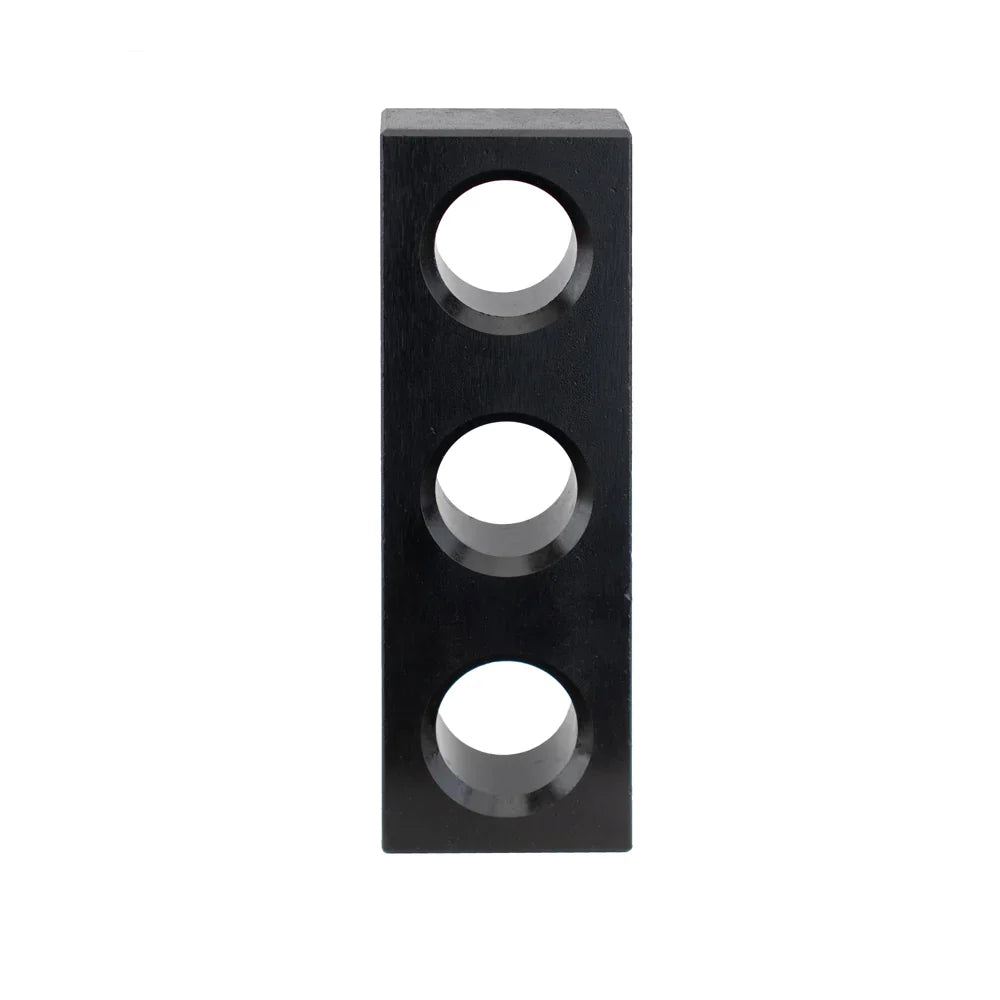

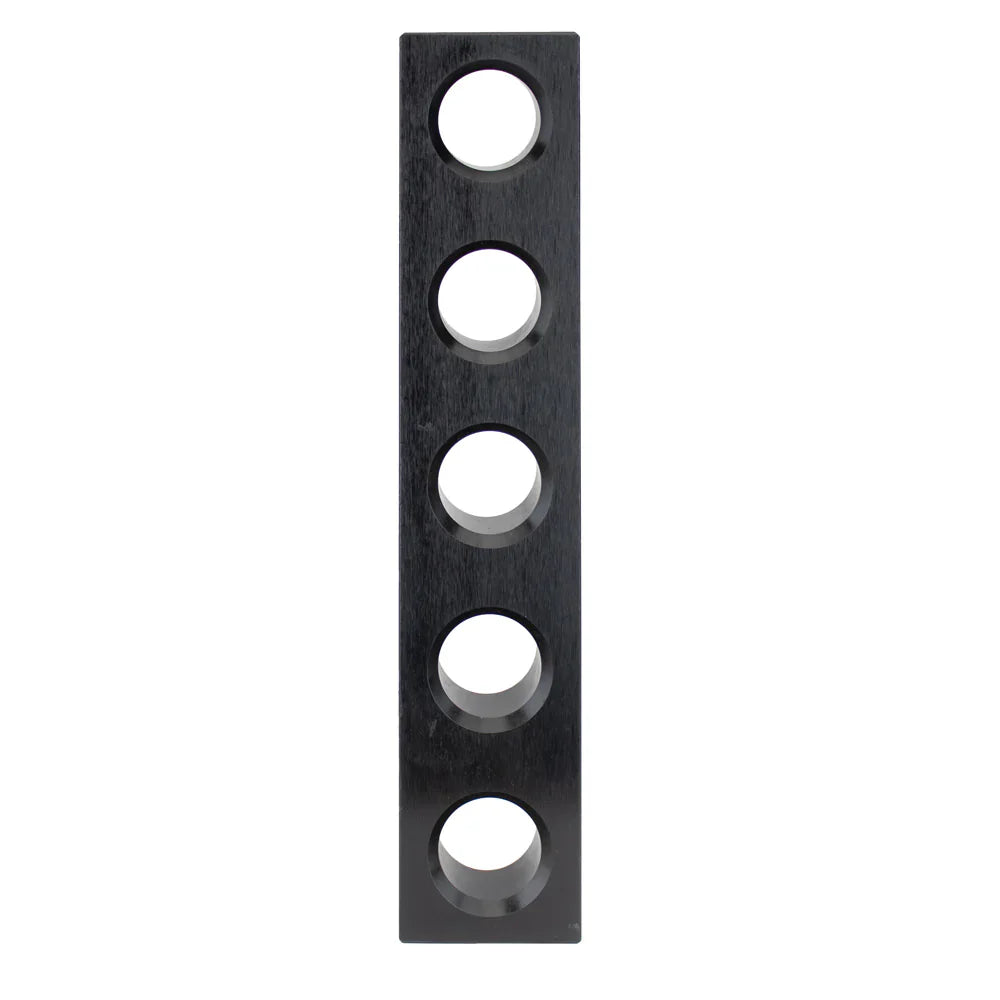

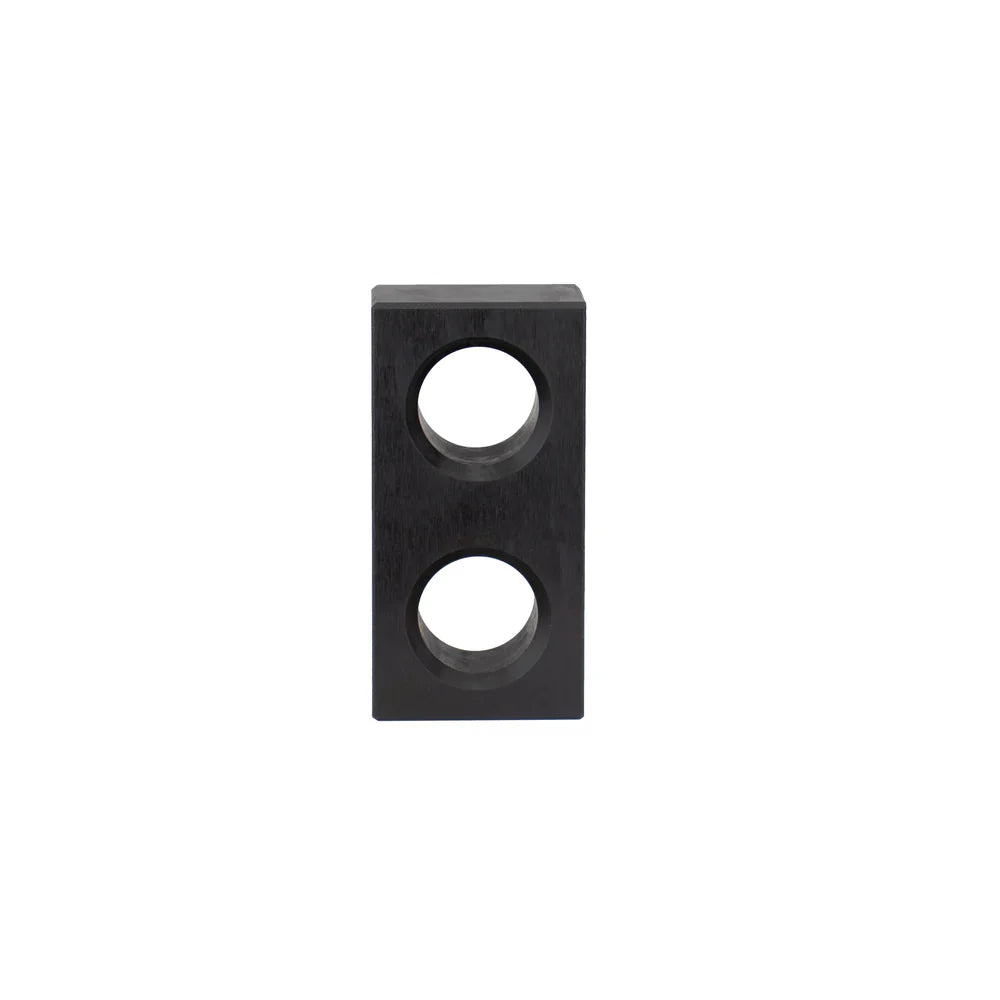

BuildPro Alpha 28 Straight Stops, No Slots, for 28mm Holes
Â
BuildPro Alpha 28 straight stops are used to align workpieces and fixturing elements are your table. This model features no slots, only 28mm boreholes. Made to fit any 28mm borehole fixturing table, including the Alpha 28 and System 28 models.Â
Insert the v-block base into welding fixture table holes or tooling and secure with included countersunk bolt.Â
| Part Number | Name | Length (mm) | Width (mm) | Thickness (mm) | Weight (kg) | ||||||
| T28-21105 Â Â | Straight Stop 100 H | 100 | 50 | 25 | 0.8 | ||||||
| T28-21155 | Straight Stop 150 H Â Â | 150 | 50 | 25 | 1.1 | ||||||
| T28-21255 Â Â | Straight Stop 250 H Â Â | 250 | 50 | 25 | 1.8 | ||||||
| Length | 100 mm – T28-21105, 150 mm – T28-21155, 250 mm – T28-21255 |
|---|
