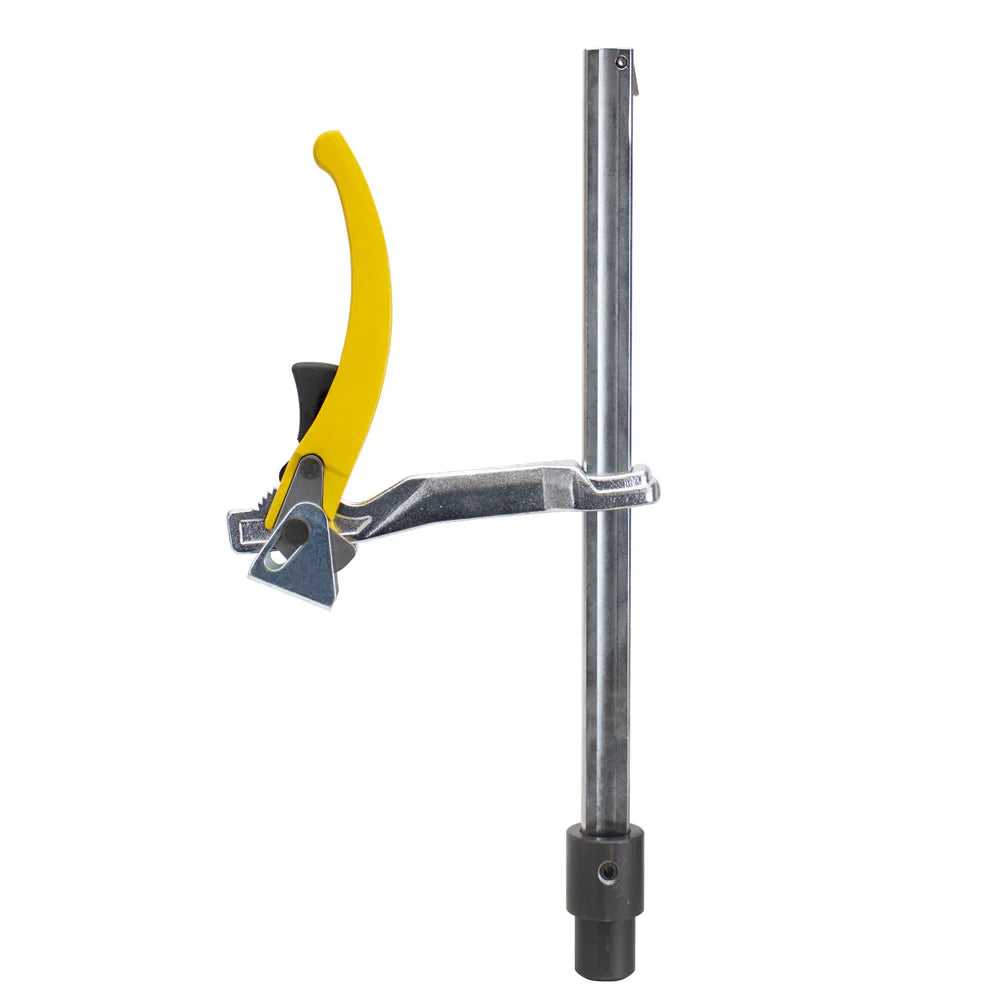

BuildPro Alpha 28 Ratcheting Inserta Clamps, for 28mm Holes



BuildPro Alpha 28 Inserta Clamps are easy to use and versatile screw clamps made to fit any 28mm borehole fixturing table, including the Alpha 28 and System 28 models. The Ratchet Handle is ideal for tight space clamping, and the ratchet mechanism ensures rapid, vibration and torsion resistant clamping.

Insert the clamp base into welding fixture table holes or tooling and use the convenient sliding arm to adjust to required height.

Part Number		Clamping Capacity (mm)		Throat Depth (mm)		Clamping Pressure (kg)		Rail Size (mm)		Weight (kg)
T28-63630		30-300		120		460		22 x 11		1.7
